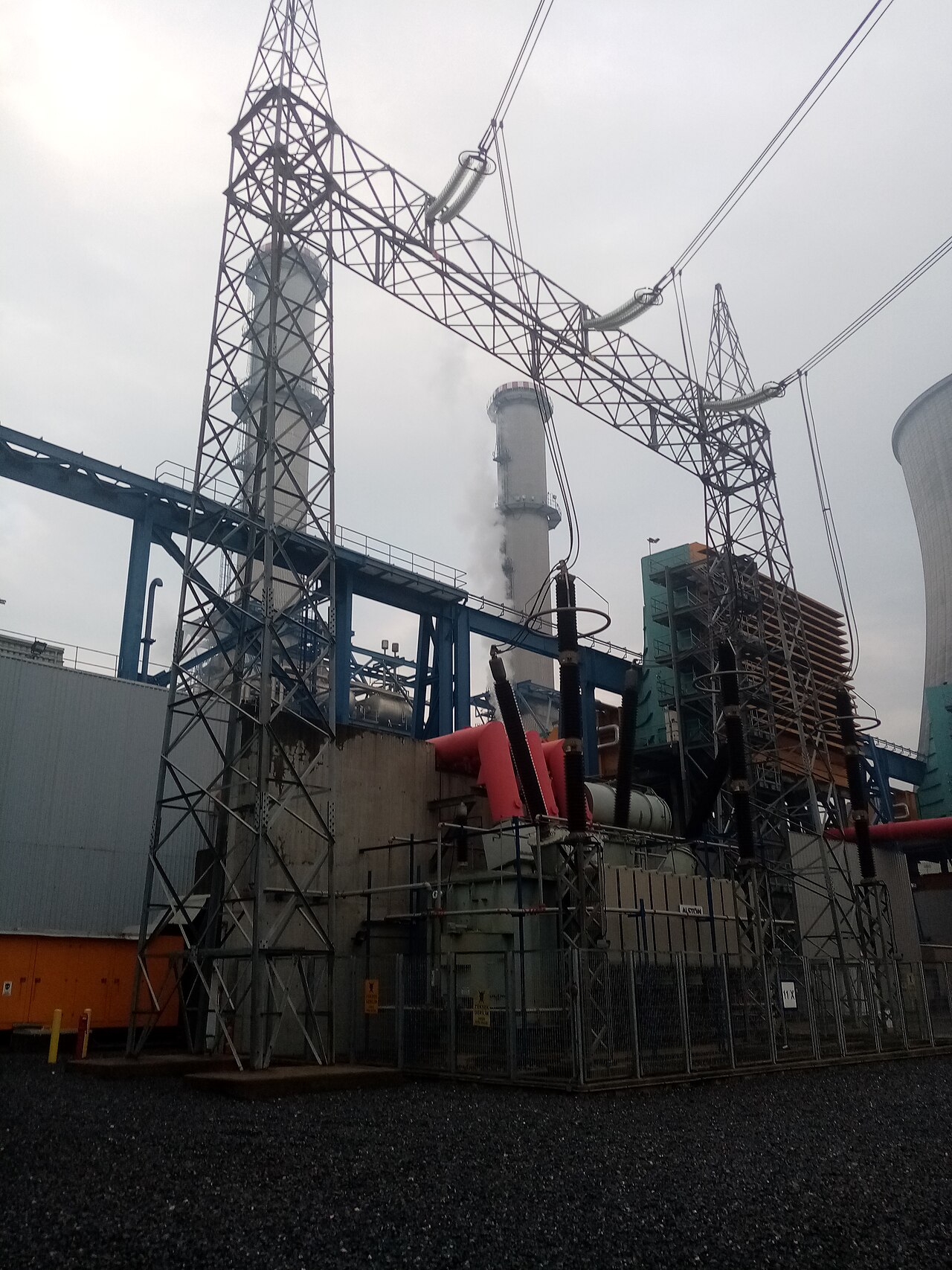

Combined-cycle power plant

Lore & Background

The basic combined cycle consists of two power-plant cycles: the Brayton (gas turbine) cycle as the topping cycle and the Rankine (steam turbine) cycle as the bottoming cycle. Heat from the gas turbine's exhaust is transferred to water and steam in a waste-heat recovery boiler, which has three sections: economiser, evaporator and superheater. The steam thus generated drives a steam turbine. Historically successful combined cycles have used mercury vapour turbines, magnetohydrodynamic generators and molten carbonate fuel cells, with steam plants for the low-temperature bottoming cycle.

Reader's Guide

Combined-cycle power plants are significant because they achieve substantially higher thermal efficiency than single-cycle plants—up to 64% net compared to 35–42% for a steam-only plant. The gas turbine can start very quickly, providing immediate power and avoiding the need for separate peaker plants. In cold climates, hot power-plant water can be sold for hot water and space heating via vacuum-insulated piping up to 90 km. The Cheng cycle, a simplified form, injects steam directly into the combustion turbine, eliminating the steam turbine but losing backup power capability.

Did You Know?

• The overall efficiency of a combined-cycle plant can be increased by about 50–60% over a simple gas turbine alone.
• Vacuum-insulated piping can carry hot power-plant water for heating as far as 90 km.

Thermodynamic Principle and Efficiency Gains

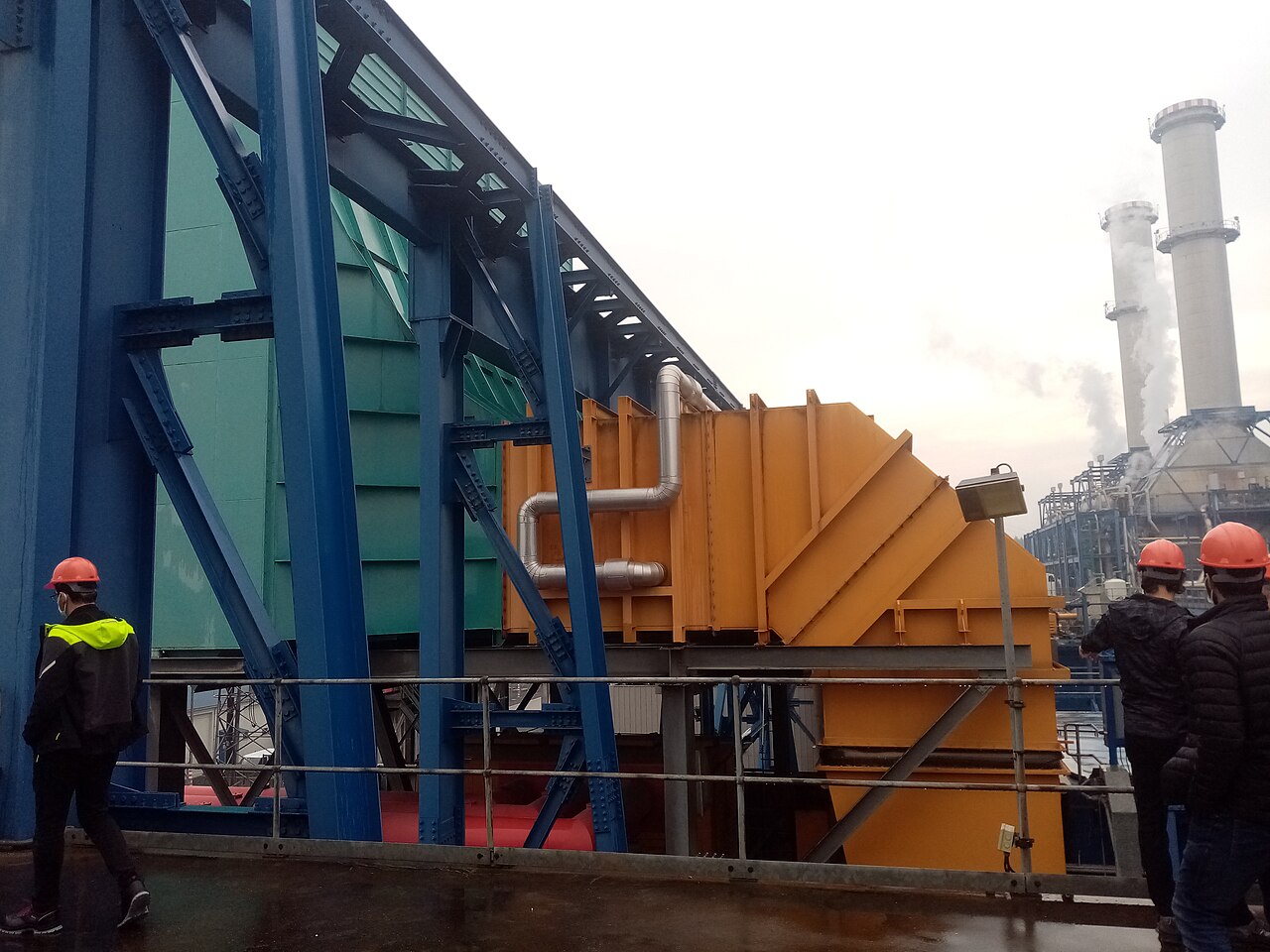

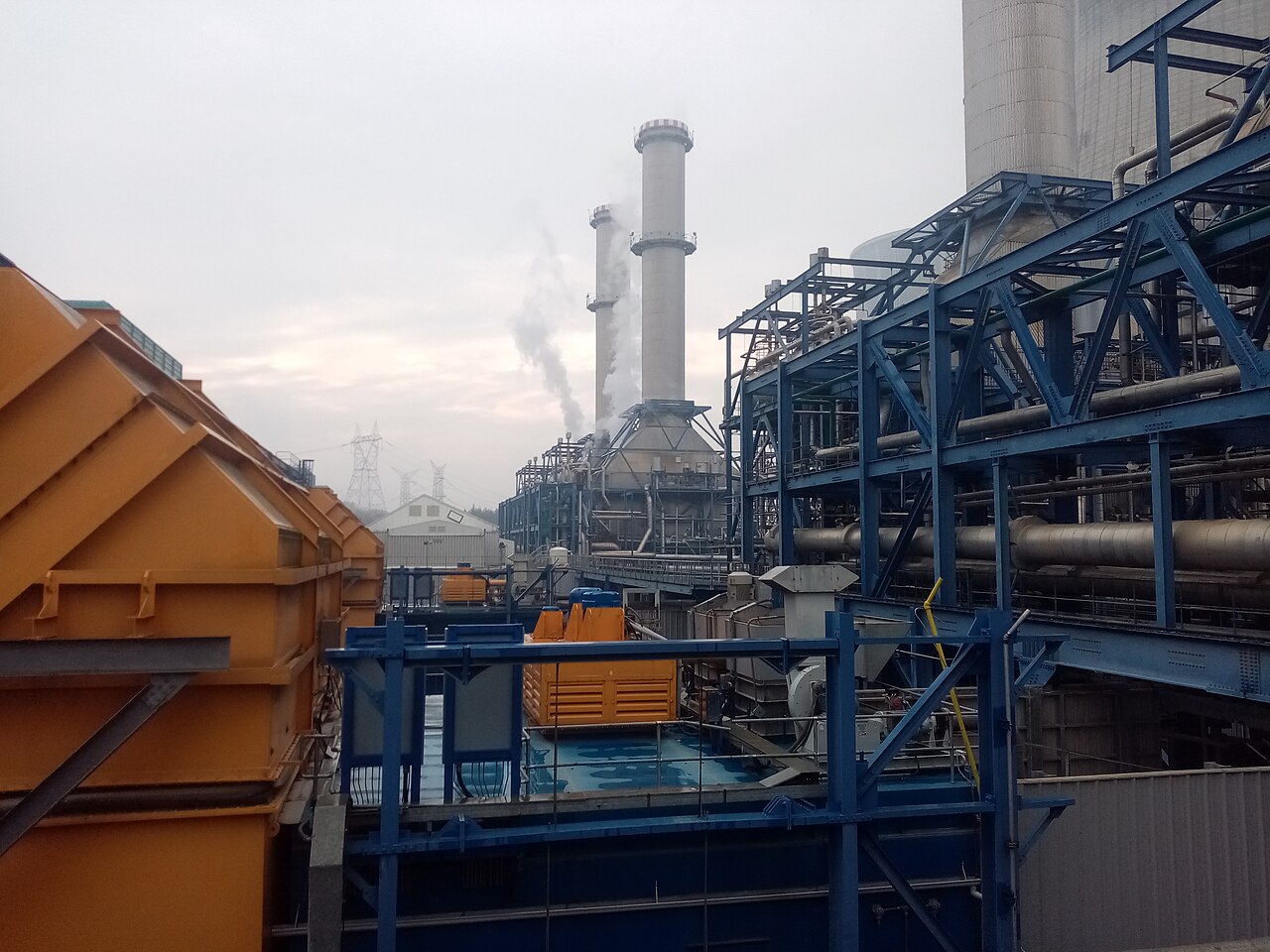

The core idea behind a combined-cycle power plant is deceptively simple: rather than allowing the exhaust from a gas turbine to dissipate into the atmosphere, that still-hot working fluid is routed into a second heat engine that extracts additional mechanical work. In practice, a heat exchanger separates the two engines so each can operate with its own working fluid. The gas turbine executes the Brayton, or Joule, cycle as the high-temperature topping stage, while the steam turbine carries out the Rankine cycle as the lower-temperature bottoming stage. The waste-heat recovery boiler sits between them, its economiser, evaporator, and superheater sections capturing thermal energy that would otherwise be wasted. The payoff is substantial: a standalone gas turbine might reach roughly 43 percent thermal efficiency, but pairing it with the steam cycle lifts net efficiency to around 64 percent in base-load operation. That represents a 50 to 60 percent relative improvement in how much useful work is drawn from the same fuel input, directly cutting operating fuel costs.

Engineering Constraints and Material Science

Why not simply build a larger steam plant? The answer lies in material science. The lower boundary is pinned by cooling-water temperature, capping a single-cycle steam plant at 35 to 42 percent efficiency. A gas turbine, by contrast, needs far less metal to endure extreme conditions because hot gas flows through open passages rather than pressurised vessels. This staggered temperature architecture is what makes the combined approach so thermodynamically favourable.

Historical Cycles and Simplified Variants

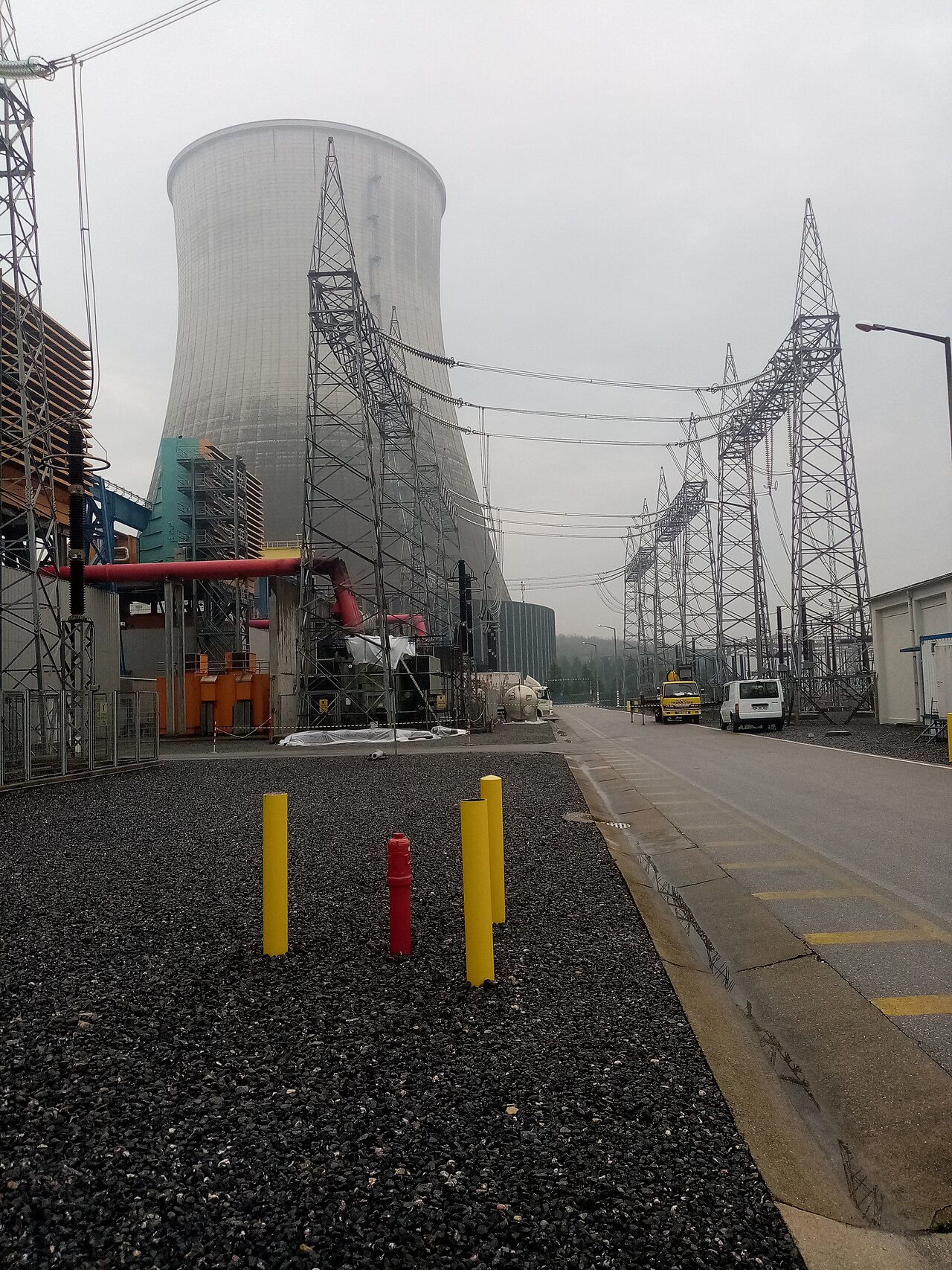

Long before the modern gas-turbine-plus-steam configuration became dominant, engineers experimented with other topping cycles paired with steam bottoming cycles. Mercury vapour turbines, magnetohydrodynamic generators, and molten carbonate fuel cells all saw commercial use in combined arrangements. At the opposite extreme, very-low-temperature bottoming cycles proved impractical because the enormous mass flows and tiny temperature differentials demanded prohibitively large equipment. One pragmatic compromise in cold climates is selling the plant's warm cooling water for district heating, with vacuum-insulated piping extending the utility up to 90 kilometres. A notable simplified variant is the Cheng cycle, patented by American professor D. Y. It injects steam directly into the combustion turbine, recovering waste heat without a separate steam turbine or generator. The trade-off is the loss of supplementary power output and the redundancy that a true two-turbine system provides.

Economics and Operational Flexibility

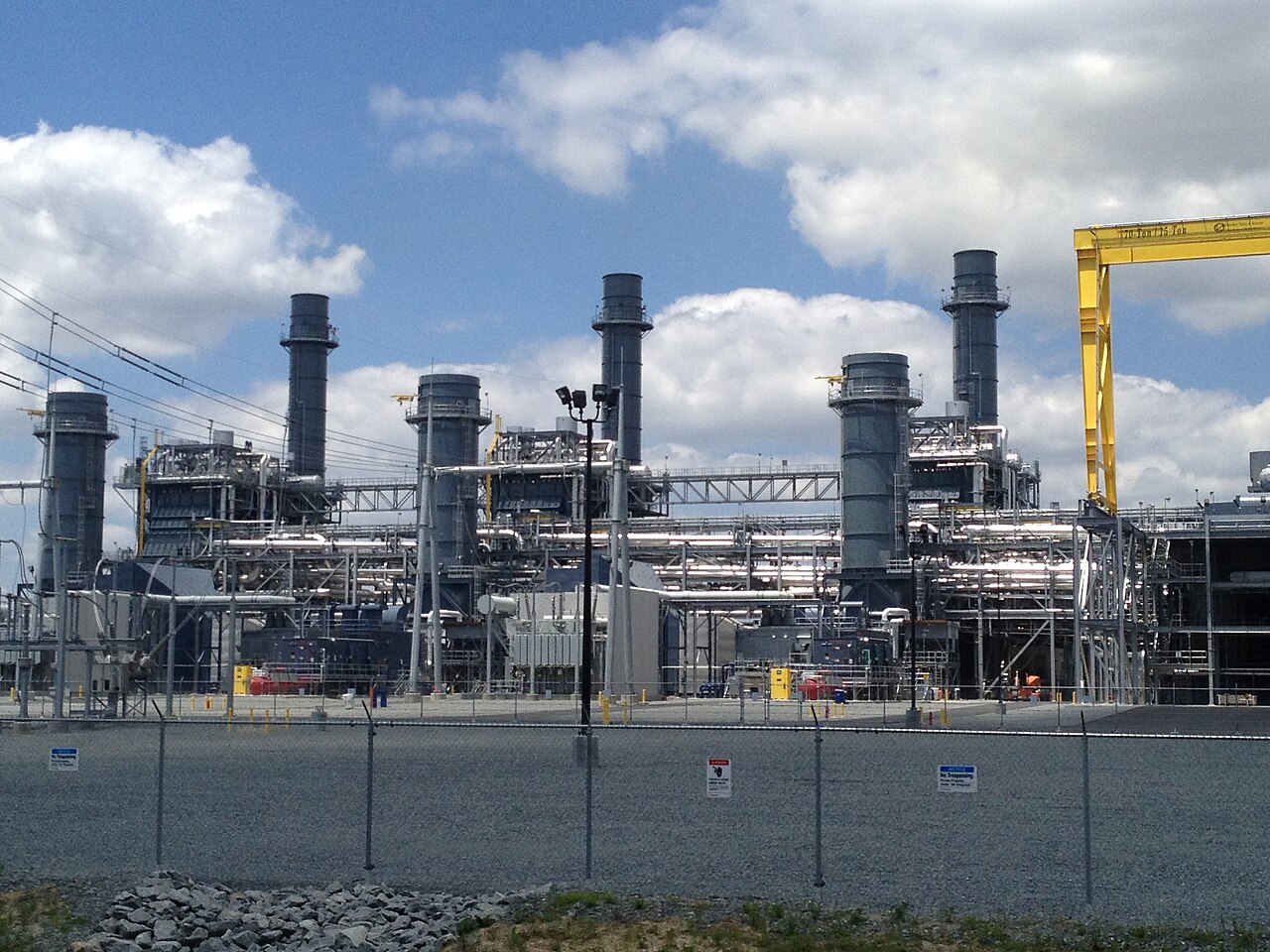

From a cost perspective, combined-cycle gas turbine plants occupy a particularly attractive position in the generation mix. Operationally, the gas turbine cycle can spool up and deliver immediate electrical power, a feature that eliminates the need for separate, expensive peaker plants in a grid or allows a vessel to manoeuvre under its own propulsion. As the secondary steam cycle gradually warms over time, fuel efficiency climbs and additional power becomes available. This dual-mode flexibility is why the same thermodynamic principle underpins both stationary electricity generation and marine COGAS propulsion, with ships typically burning fuel oil while land-based units favour natural gas or coal-derived synthesis gas.
